Direct detection with an optimal transfer function: toward the electrical spectral efficiency of coherent homodyne detection
-
Abstract
Complex-valued double-sideband direct detection (DD) can reconstruct the optical field and achieve a high electrical spectral efficiency (ESE) comparable to that of a coherent homodyne receiver, and DD does not require a costly local oscillator laser. However, a fundamental question remains if there is an optimal DD receiver structure with the simplest design to approach the performance of the coherent homodyne detection. This study derives the optimal DD receiver structure with an optimal transfer function to recover a quadrature amplitude modulation (QAM) signal with a near-zero guard band at the central frequency of the signal. We derive the theoretical ESE limit for various detection schemes by invoking Shannon’s formula. Our proposed scheme is closest to coherent homodyne detection in terms of the theoretical ESE limit. By leveraging a WaveShaper to construct the optimal transfer function, we conduct a proof-of-concept experiment to transmit a net 228.85-Gb/s 64-QAM signal over an 80-km single-mode fiber with a net ESE of 8.76 b/s/Hz. To the best of our knowledge, this study reports the highest net ESE per polarization per wavelength for DD transmission beyond 40-km single-mode fiber. For a comprehensive metric, denoted as 2ESE×Reach, we achieve the highest 2ESE×Reach per polarization per wavelength for DD transmission. -
-
References
[1] Xie YW, Hong SH, Yan H et al. Low-loss chip-scale programmable silicon photonic processor. Opto-Electron Adv 6, 220030 (2023). doi: 10.29026/oea.2023.220030 [2] Xu ZY, Niu WQ, Liu Y et al. 31.38 Gb/s GaN-based LED array visible light communication system enhanced with V-pit and sidewall quantum well structure. Opto-Electron Sci 2, 230005 (2023). doi: 10.29026/oes.2023.230005 [3] Xie CJ, Zhang B. Scaling optical interconnects for hyperscale data center networks. Proc IEEE 110, 1699–1713 (2022). doi: 10.1109/JPROC.2022.3178977 [4] Wan YJ, Liu XD, Wu GZ et al. Efficient stochastic parallel gradient descent training for on-chip optical processor. Opto-Electron Adv 7, 230182 (2024). doi: 10.29026/oea.2024.230182 [5] Khonina SN, Kazanskiy NL, Butt MA et al. Optical multiplexing techniques and their marriage for on-chip and optical fiber communication: a review. Opto-Electron Adv 5, 210127 (2022). doi: 10.29026/oea.2022.210127 [6] Fan QR, Zhou G, Gui T et al. Advancing theoretical understanding and practical performance of signal processing for nonlinear optical communications through machine learning. Nat Commun 11, 3694 (2020). doi: 10.1038/s41467-020-17516-7 [7] Che D, Chen X. Higher-order modulation vs faster-than-Nyquist PAM-4 for datacenter IM-DD optics: an AIR comparison under practical bandwidth limits. J Lightwave Technol 40, 3347–3357 (2022). doi: 10.1109/JLT.2022.3172247 [8] Zhong KP, Zhou X, Huo JH et al. Digital signal processing for short-reach optical communications: a review of current technologies and future trends. J Lightwave Technol 36, 377–400 (2018). doi: 10.1109/JLT.2018.2793881 [9] Mecozzi A, Antonelli C, Shtaif M. Kramers–Kronig coherent receiver. Optica 3, 1220–1227 (2016). doi: 10.1364/OPTICA.3.001220 [10] Le ST, Schuh K, Dischler R et al. Beyond 400 Gb/s direct detection over 80 km for data center interconnect applications. J Lightwave Technol 38, 538–545 (2020). doi: 10.1109/JLT.2019.2941690 [11] Che D, Sun C, Shieh W. Maximizing the spectral efficiency of stokes vector receiver with optical field recovery. Opt Express 26, 28976–28981 (2018). doi: 10.1364/OE.26.028976 [12] Che D, Chandrasekhar S, Chen X et al. Single-channel direct detection reception beyond 1 Tb/s. In Optical Fiber Communications Conference and Exhibition1−3 (IEEE, 2019); http://doi.org/10.1364/OFC.2019.Th4B.7. [13] Chen HS, Fontaine NK, Mazur M et al. 140G/70G direct detection PON with >37 dB power budget and 40-km reach enabled by colorless phase retrieval full field recovery. In European Conference on Optical Communication 1−4 (IEEE, 2021); http://doi.org/10.1109/ECOC52684.2021.9605860. [14] Shieh W, Sun C, Ji HL. Carrier-assisted differential detection. Light Sci Appl 9, 18 (2020). doi: 10.1038/s41377-020-0253-8 [15] Li JC, Wang Z, Ji HL et al. High electrical spectral efficiency silicon photonic receiver with carrier-assisted differential detection. In Optical Fiber Communication Conference and Exhibition (OFC, 2022); http://doi.org/10.1364/OFC.2022.Th4B.6. [16] Li J, Wang Z, Li X et al. Net 426-Gb/s and 11.83-b/s/Hz 80-km transmission with an integrated SiP dual-polarization direct detection receiver. In European Conference on Optical Communications 1710−1713 (IEEE, 2023); http://doi.org/10.1049/icp.2023.2673. [17] Li JC, Wang Z, Li XF et al. Modified SiP single-polarization CADD receiver. Opt Lett 49, 1133–1136 (2024). doi: 10.1364/OL.513892 [18] Li XY, O’Sullivan M, Xing ZP et al. Asymmetric self-coherent detection. Opt Express 29, 25412–25427 (2021). doi: 10.1364/OE.421603 [19] Hu YX, Li XY, Mao D et al. Transmission of net 200 Gbps/λ over 40 km of SMF using an integrated SiP phase-diverse receiver. In European Conference on Optical Communications 1−4 (IEEE, 2022). https://ieeexplore.ieee.org/document/9979400 [20] Wu Q, Li XY, Zhu YX et al. Single-wavelength net 1 Tb/s transmission in SMF and 6.4 Tb/s in weakly-coupled 7-core MCF using a phase- and polarization-diverse direct detection receiver in jones space. In Opto-Electronics and Communications Conference 1−4 (IEEE, 2023); http://doi.org/10.1109/OECC56963.2023.10209682. [21] Wu Q, Zhu YX, Li XY et al. Four-dimensional direct detection receiver enabling Jones-space field recovery with phase and polarization diversity. Photonics Res 12, 399–410 (2024). doi: 10.1364/PRJ.498624 [22] Li XF, An SH, Ji HL et al. Deep-learning-enabled high-performance full-field direct detection with dispersion diversity. Opt Express 30, 11767–11788 (2022). doi: 10.1364/OE.453635 [23] Li XF, An SH, Li JC et al. Deep-learning enabled direct detection of 42-GBaud complex-valued DSB 16-QAM signal. In Conference on Lasers and Electro-Optics (Optica Publishing Group, 2022); http://doi.org/10.1364/CLEO_SI.2022.SW4E.4. [24] Li XF, Li JC, An SH et al. Deep-learning-enabled high electrical-spectral-efficiency direct detection with reduced computation complexity. In Optical Fiber Communication Conference (Optica Publishing Group, 2023); http://doi.org/10.1364/OFC.2023.M2F.2. [25] Li XF, Li JC, An SH et al. Deep-learning-enabled direct detection with reduced computational complexity and high electrical-spectral-efficiency. J Lightwave Technol 41, 5495–5502 (2023). doi: 10.1109/JLT.2023.3263640 [26] Zhang JS, Li XY, Hu YX et al. Spectrally efficient integrated silicon photonic phase-diverse DD receiver with near-ideal phase response for C-band DWDM transmission. Laser Photonics Rev 18, 2300623 (2024). doi: 10.1002/lpor.202300623 [27] Liu GN, Zhang L, Zuo TJ et al. IM/DD transmission techniques for emerging 5G fronthaul, DCI, and metro applications. J Lightwave Technol 36, 560–567 (2018). doi: 10.1109/JLT.2018.2793313 [28] Liu X. Enabling optical network technologies for 5G and beyond. J Lightwave Technol 40, 358–367 (2022). doi: 10.1109/JLT.2021.3099726 [29] Karar AS, Falou ARE, Barakat JMH et al. Recent advances in coherent optical communications for short-reach: phase retrieval methods. Photonics 10, 308 (2023). doi: 10.3390/photonics10030308 [30] Bo TW, Kim H. DC component recovery in kramers-kronig receiver utilizing AC-coupled photo-detector. J Lightwave Technol 38, 4307–4314 (2020). doi: 10.1109/JLT.2020.2990905 [31] Hao JY, Lin X, Lin YK et al. Lensless complex amplitude demodulation based on deep learning in holographic data storage. Opto-Electron Adv 6, 220157 (2023). doi: 10.29026/oea.2023.220157 [32] Que ZQ, Zhu YX, Fan HX et al. Mapping large LSTMs to FPGAs with weight reuse. J Signal Process Syst 92, 965–979 (2020). doi: 10.1007/s11265-020-01549-8 [33] Molchanov P, Tyree S, Karras T, et al. Pruning convolutional neural networks for resource efficient inference. arXiv: 1611.06440 (2016); http://doi.org/10.48550/arXiv.1611.06440. [34] Proakis J G. Digital Communications 4th ed (McGraw-Hill, Boston, 2001). [35] Chen X, Chandrasekhar S, Winzer P J. Self-coherent systems for short reach transmission. In European Conference on Optical Communication 1–3 (IEEE, 2018); http://doi.org/10.1109/ECOC.2018.8535234. [36] Li A, Peng WR, Cui Y et al. Single-λ 112Gbit/s 80-km transmission of PAM4 signal with optical signal-to-signal beat noise cancellation. In Optical Fiber Communications Conference and Exposition 1–3 (Optica Publishing Group, 2018); http://doi.org/10.1364/OFC.2018.Tu2C.5. [37] Che D, Chen X, He JY et al. 102.4-Gb/s single-polarization direct-detection reception using signal carrier interleaved optical OFDM. In Optical Fiber Communication Conference (Optica Publishing Group, 2014); http://doi.org/10.1364/OFC.2014.Tu3G.7. [38] Jiang WJ, Xu L, Liu YF et al. Optical all-pass filter in silicon-on-insulator. ACS Photonics 7, 2539–2546 (2020). doi: 10.1021/acsphotonics.0c00848 [39] Klaus W, Winzer PJ, Nakajima K. The role of parallelism in the evolution of optical fiber communication systems. Proc IEEE 110, 1619–1654 (2022). doi: 10.1109/JPROC.2022.3207920 [40] Winzer PJ. Energy-efficient optical transport capacity scaling through spatial multiplexing. IEEE Photonics Technol Lett 23, 851–853 (2011). doi: 10.1109/LPT.2011.2140103 [41] Zhu YX, Ruan XK, Zou KH et al. Beyond 200G direct detection transmission with Nyquist asymmetric twin-SSB signal at C-band. J Lightwave Technol 35, 3629–3636 (2017). doi: 10.1109/JLT.2017.2718098 [42] Shekhar S, Bogaerts W, Chrostowski L et al. Roadmapping the next generation of silicon photonics. Nat Commun 15, 751 (2024). doi: 10.1038/s41467-024-44750-0 [43] Pandey A, Mi ZT. Multi-wavelength nanowire micro-LEDs for future high speed optical communication. Opto-Electron Adv 7, 240011 (2024). doi: 10.29026/oea.2024.240011 [44] Su YK, Zhang Y, Qiu CY et al. Silicon photonic platform for passive waveguide devices: materials, fabrication, and applications. Adv Mater Technol 5, 1901153 (2020). doi: 10.1002/admt.201901153 [45] Zhang RH, Li XF, He Y et al. Ultra-high bandwidth density and power efficiency chip-to-chip multimode transmission through a rectangular core few-mode fiber. Laser Photonics Rev 17, 2200750 (2023). doi: 10.1002/lpor.202200750 [46] Kaushal S, Aadhi A, Roberge A et al. All-fibre phase filters with 1-GHz resolution for high-speed passive optical logic processing. Nat Commun 14, 1808 (2023). doi: 10.1038/s41467-023-37472-2 [47] Ji XC, Roberts S, Corato-Zanarella M et al. Methods to achieve ultra-high quality factor silicon nitride resonators. APL Photonics 6, 071101 (2021). doi: 10.1063/5.0057881 [48] Zhang H, Huang BJ, Zhang Z et al. Monolithic integration of CMOS temperature control circuit and Si3N4 microring filters for wavelength stabilization within ultra wide operating temperature range. IEEE J Sel Top Quantum Electron 26, 8200407 (2020). [49] Zhou X, Gao YY, Huo JH et al. Theoretical analysis of phase noise induced by laser Linewidth and mismatch length in self-homodyne coherent systems. J Lightwave Technol 39, 1312–1321 (2021). doi: 10.1109/JLT.2020.3038213 [50] Zhong KP, Zhou X, Gao YL et al. 140-Gb/s 20-km transmission of PAM-4 signal at 1.3 μm for short reach communications. IEEE Photonics Technol Lett 27, 1757–1760 (2015). doi: 10.1109/LPT.2015.2439571 -
Supplementary Information
Supplementary information for Direct detection with an optimal transfer function: toward the electrical spectral efficiency of coherent homodyne detection
-
Access History
Figures(11)
Tables(1)
Article Metrics
Export File
Citation
Li XF, Li JC, Ni X et al. Direct detection with an optimal transfer function: toward the electrical spectral efficiency of coherent homodyne detection. Opto-Electron Sci 4, 240020 (2025). doi: 10.29026/oes.2025.240020
Format
Content
DownLoad:
-
Figure 1.

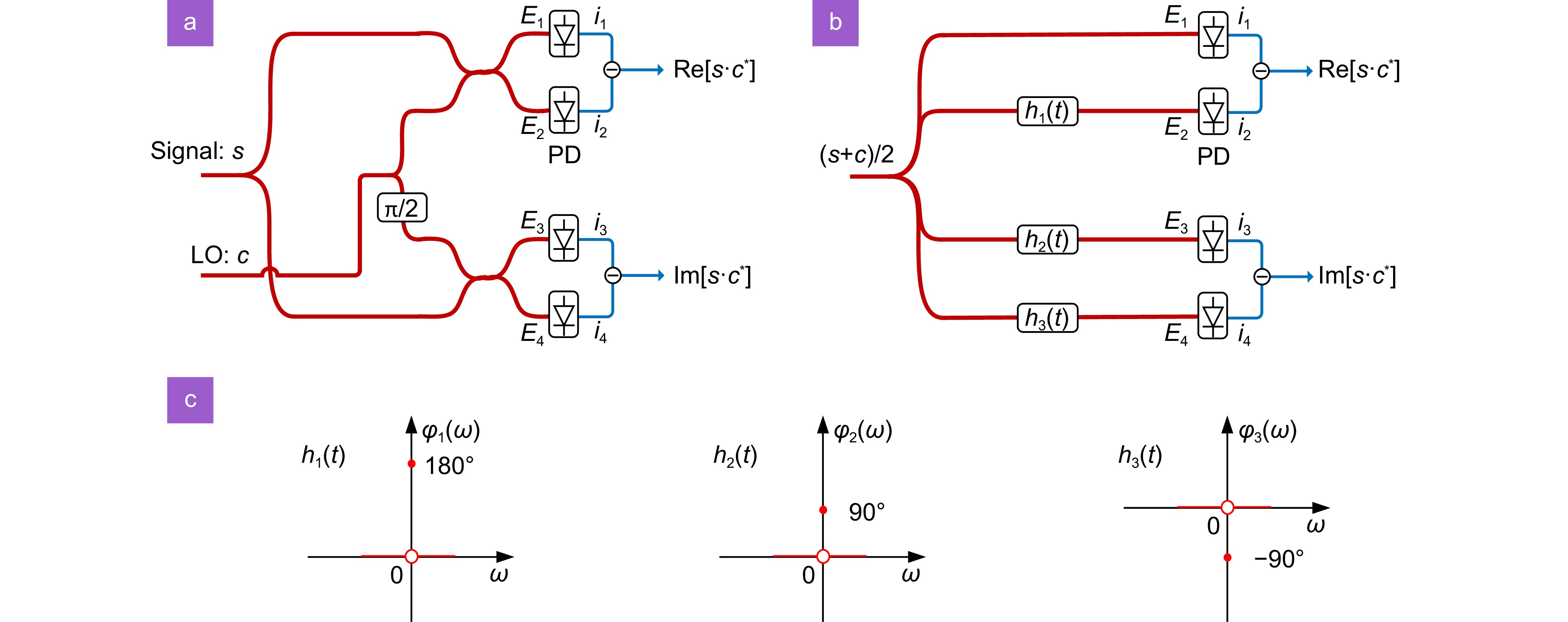

(a) Configuration of the phase-diversity coherent homodyne receiver. (b) Optimal DD receiver with three frequency-selective phase shifters. (c) Phase responses of h1(t), h2(t), and h3(t).
-
Figure 2.

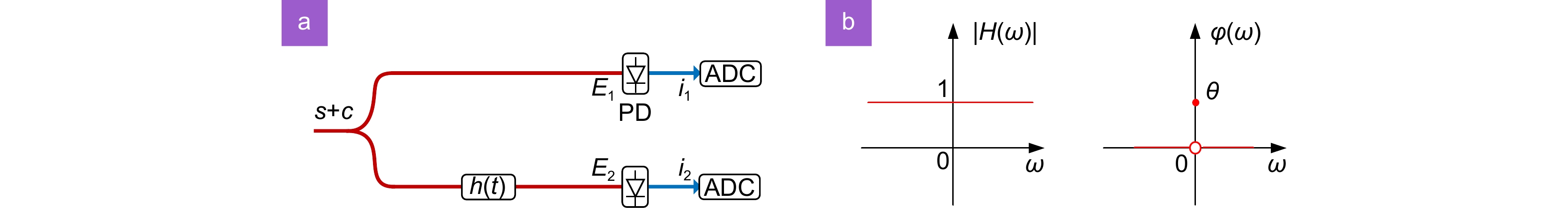

Proposed DD receiver with the optimal transfer function. (a) Optimal receiver structure. (b) Optimal amplitude and phase responses of h(t).
-
Figure 3.

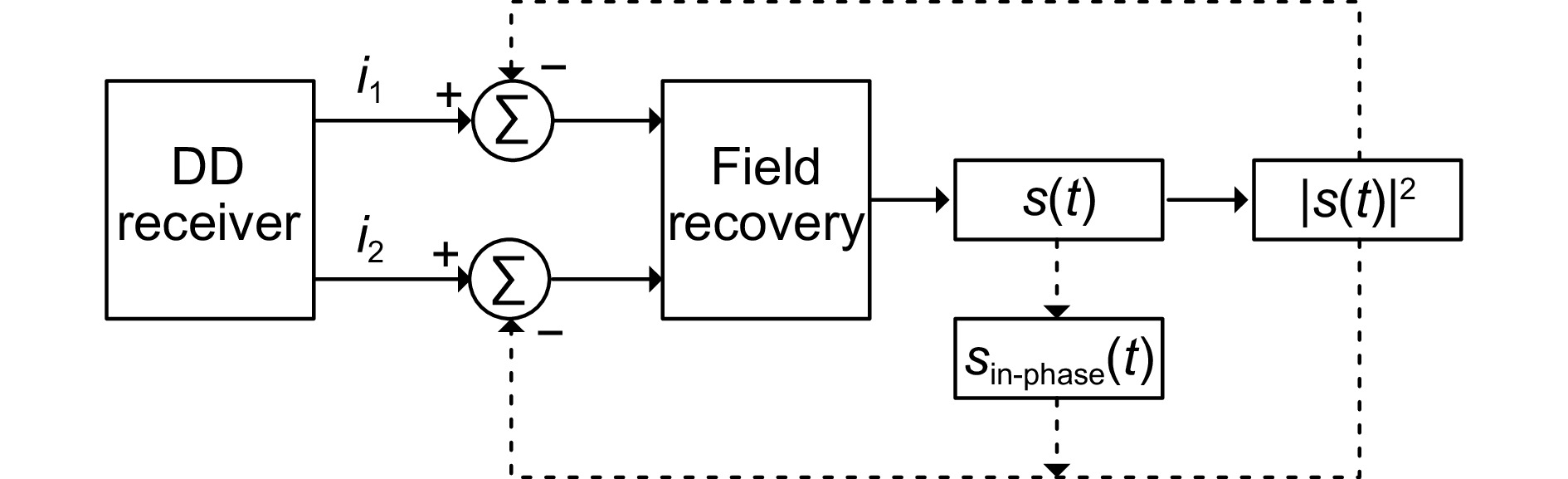

Schematic diagram of the iterative SSBI cancellation algorithm.
-
Figure 4.

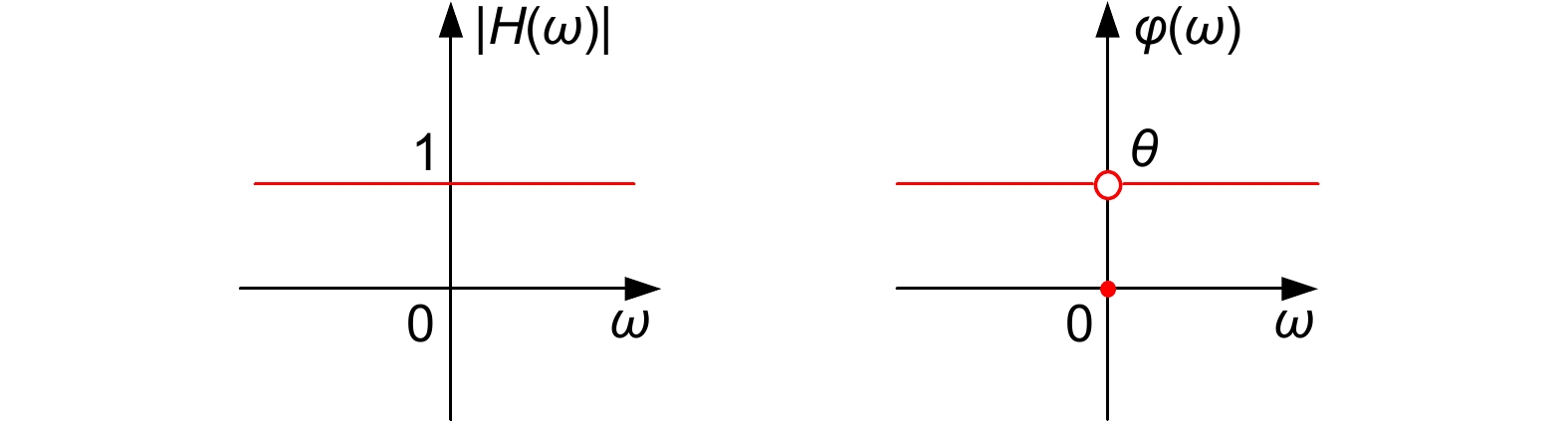

Alternative amplitude and phase responses of h(t).
-
Figure 5.
Simulated BER versus θ for Solution 1 (a) without, and (b) with iterative SSBI cancellation. Simulated BER versus θ for Solution 2 (c) without, and (d) with iterative SSBI cancellation.
-
Figure 6.

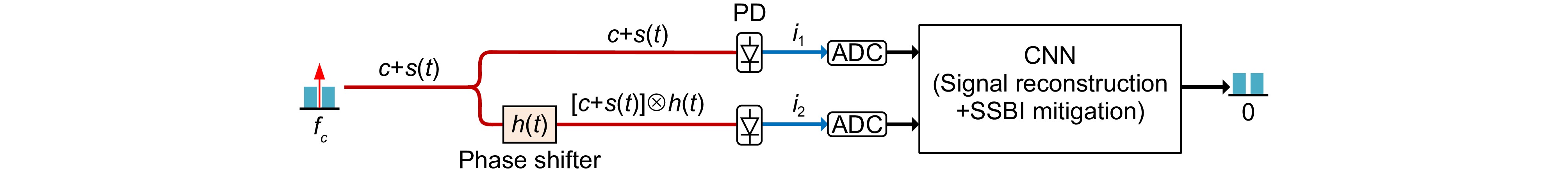

Solution 3: signal reconstruction and SSBI mitigation in one step with the CNN.
-
Figure 7.
Solution 3: (a) Simulated BER versus θ at different CSPR and OSNR values. (b) Simulated BER versus OSNR for different schemes with a CSPR of 6 dB.
-
Figure 8.

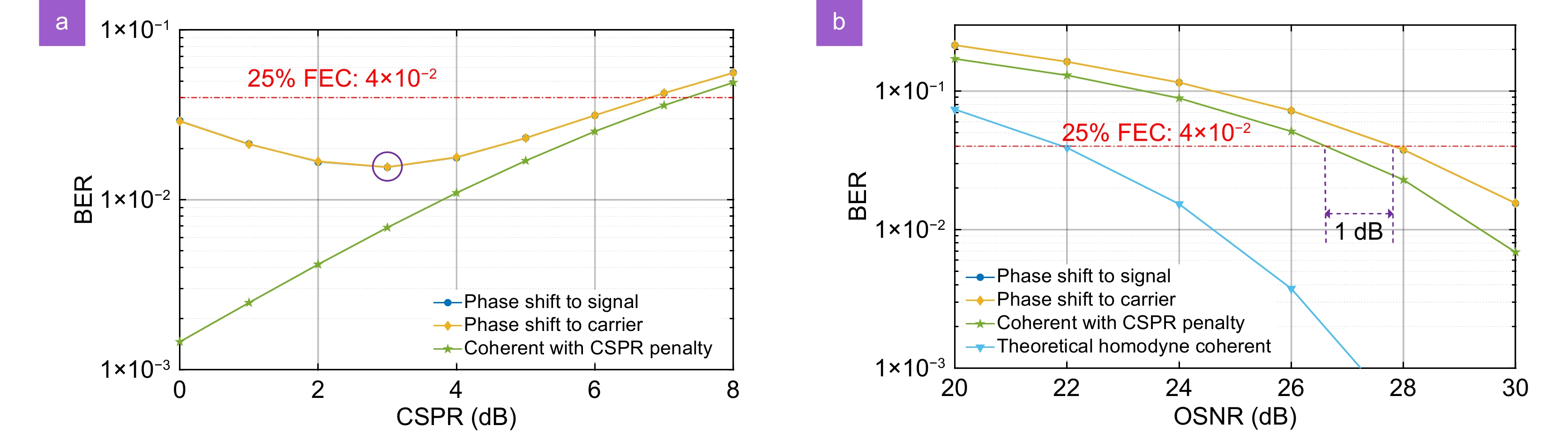

(a) Simulated BER versus CSPR for different schemes with a 30-dB OSNR. (b) Simulated BER versus OSNR for different schemes with a 3-dB CSPR.
-
Figure 9.

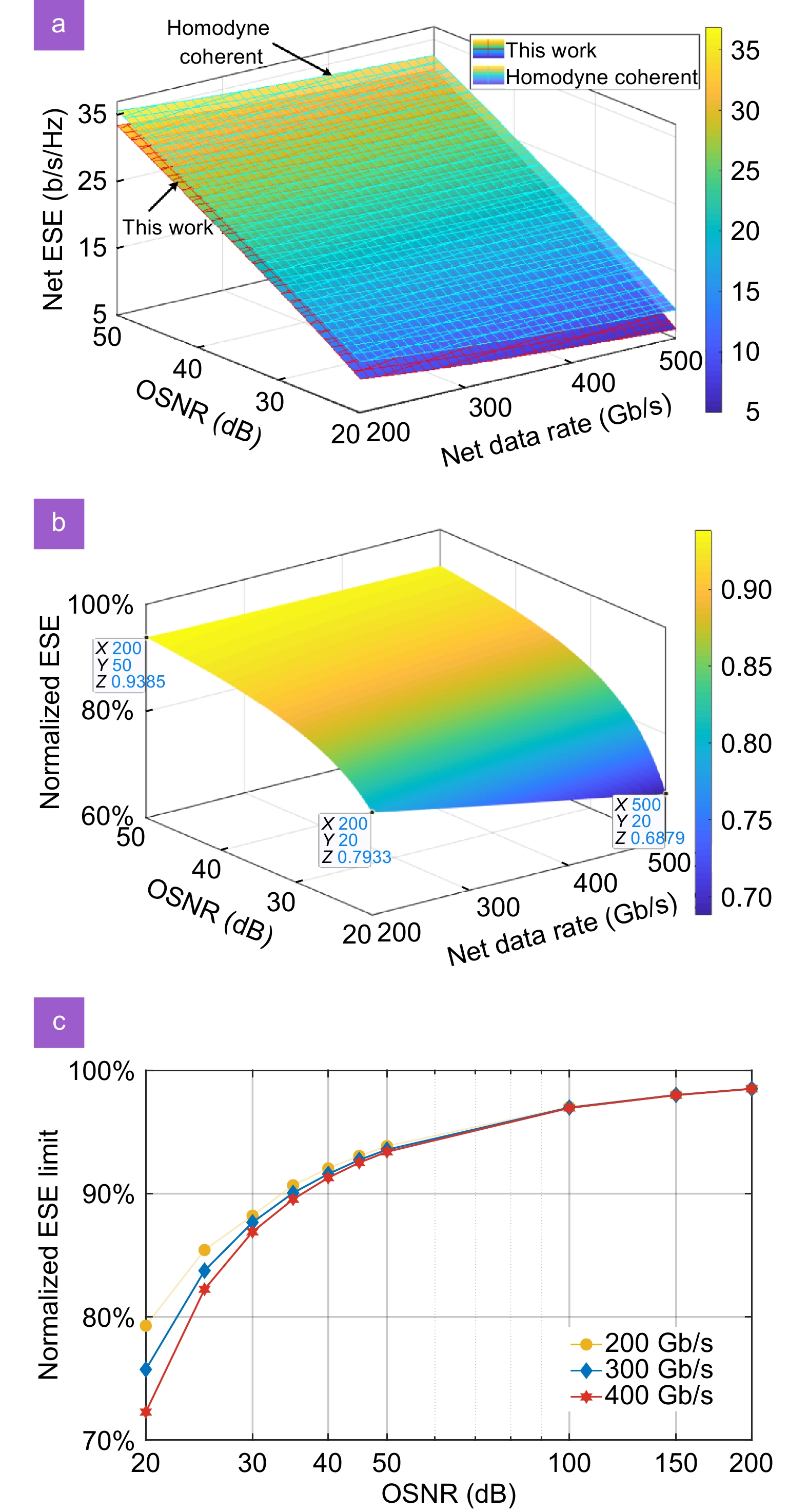

(a) Theoretical ESE limits for different schemes. (b) Normalized theoretical ESE limit of our proposed scheme. (c) Normalized theoretical ESE limit of our proposed scheme versus OSNR for different net rates.
-
Figure 10.

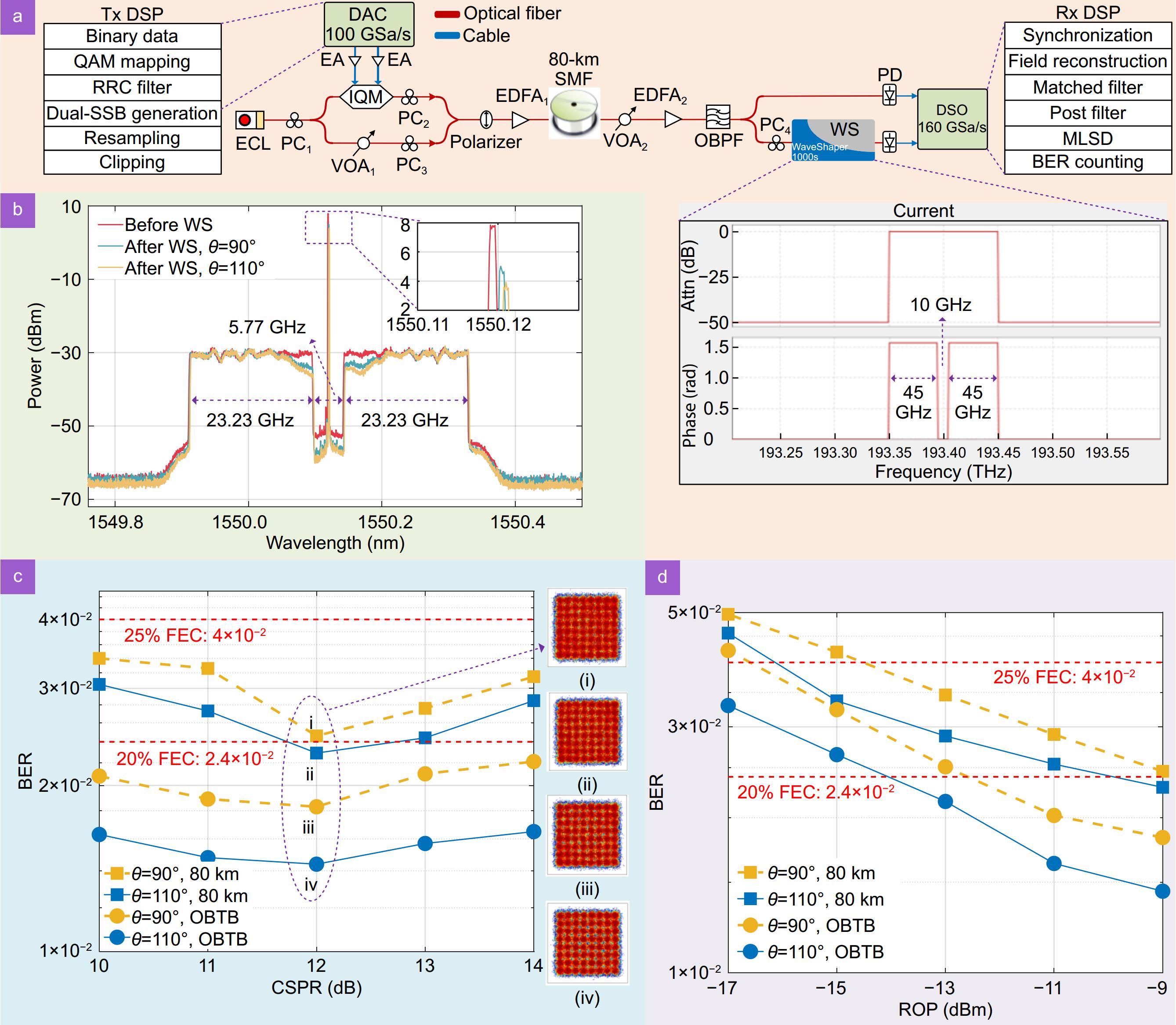

(a) Experimental setup and DSP flow charts. DAC: digital-to-analog converter; EA: electrical amplifier; IQM: in-phase and quadrature modulator; ECL: external cavity laser; PC: polarization controller; VOA: variable optical attenuator; EDFA: erbium-doped fiber amplifier; OBPF: optical bandpass filter; DSO: digital storage oscilloscope; MLSD: maximum-likelihood sequence decision. (b) Optical spectra of the 64-QAM signals measured at different stages. (c) BER versus CSPR in the transmission and OBTB cases. Insets (i-iv) show constellations at 12-dB CSPR. (d) BER versus ROP in the transmission and OBTB cases.
-
Figure 11.

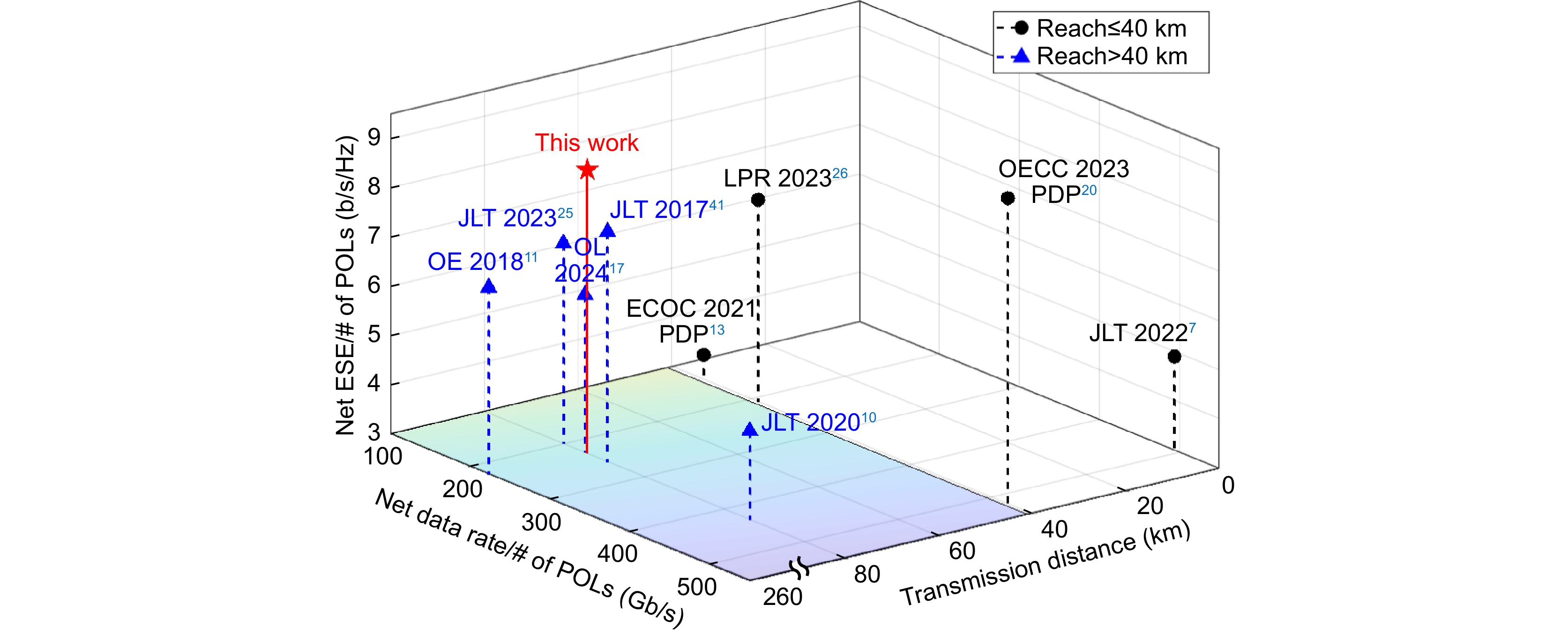

Visual representation of the state-of-the-art transmission results on DD systems. POLs: polarizations.
