Design theory and method of off-axis four-mirror telescope for space-based gravitational-wave mission

Fan Zichao; Tan Hao; Mo Yan; Wang Haibo; Zhao Lujia; Ji Huiru; Jiang Zhiyu; Peng Ruyi; Fu Liping; Ma Donglin

doi:10.12086/oee.2023.230194

Article navigation > Opto-Electronic Engineering > 2023 Vol. 50 > No. 11 > 230194

Next Article Previous Article

Fan Z C, Tan H, Mo Y, et al. Design theory and method of off-axis four-mirror telescope for space-based gravitational-wave mission[J]. Opto-Electron Eng, 2023, 50(11): 230194. doi: 10.12086/oee.2023.230194

Citation:

Fan Z C, Tan H, Mo Y, et al. Design theory and method of off-axis four-mirror telescope for space-based gravitational-wave mission[J]. Opto-Electron Eng, 2023, 50(11): 230194. doi: 10.12086/oee.2023.230194

Design theory and method of off-axis four-mirror telescope for space-based gravitational-wave mission

1.
School of Physics, Huazhong University of Science and Technology, Wuhan, Hubei 430074, China
2.
School of Optical and Electronic Information and Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology, Wuhan, Hubei 430074, China
3.
Shenzhen Huazhong University of Science and Technology, Shenzhen, Guangdong 518057, China
4.
The National Space Science Center (NSSC) of the Chinese Academy of Sciences (CAS), Beijing 100190, China

Fund Project: Project supported by the National Natural Science Foundation of China (12274156), Technology and Innovation Commission of Shenzhen Municipality (JCYJ20210324115812035), and Key Research Program of the Chinese Academy of Sciences (JCPYJJ-22007)

More Information

^*Corresponding author: madonglin@hust.edu.cn

Received Date 08 August 2023

Revised Date 18 October 2023

Accepted Date 19 October 2023

Published Date 29 December 2023

Abstract

Abstract

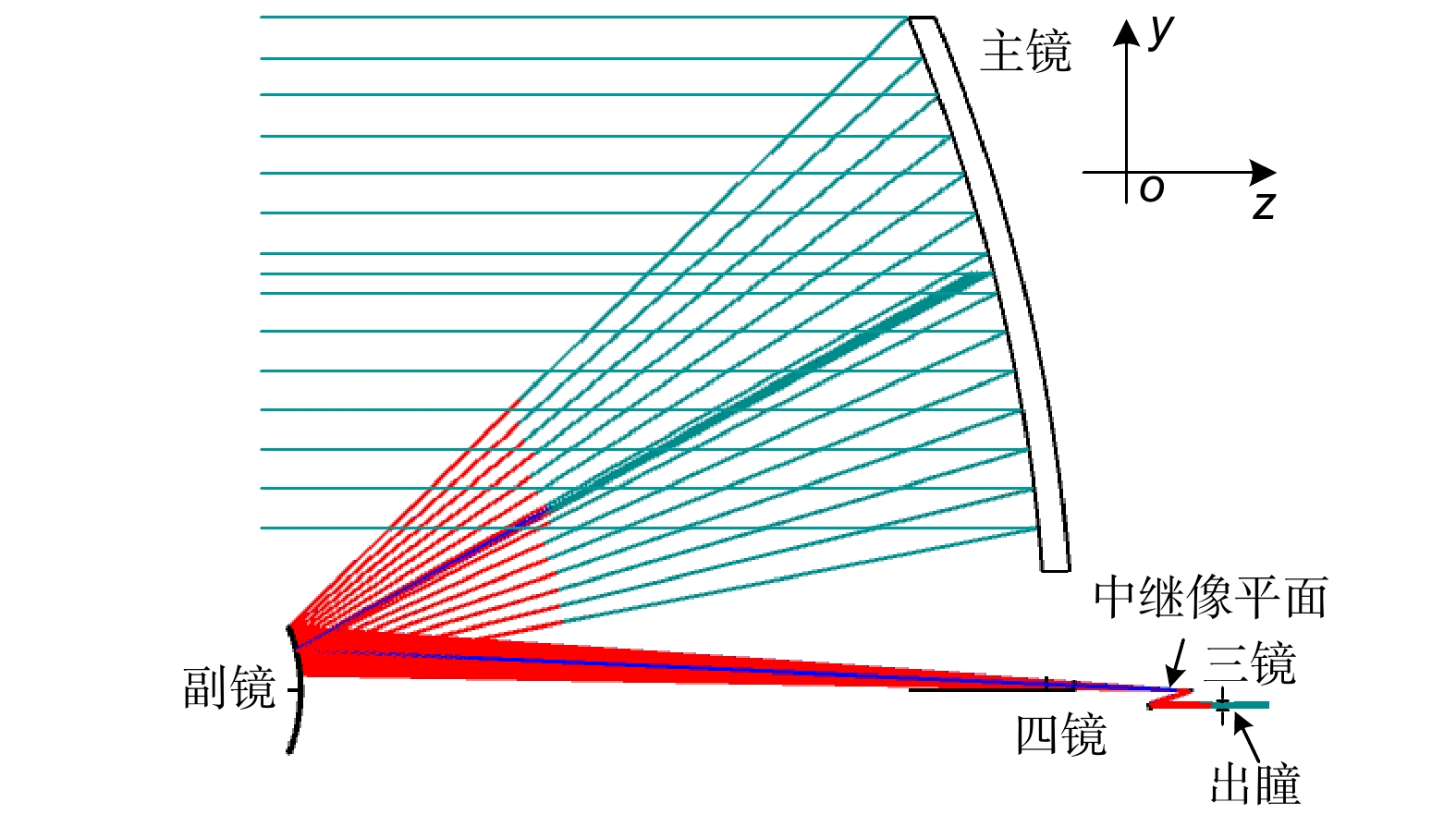

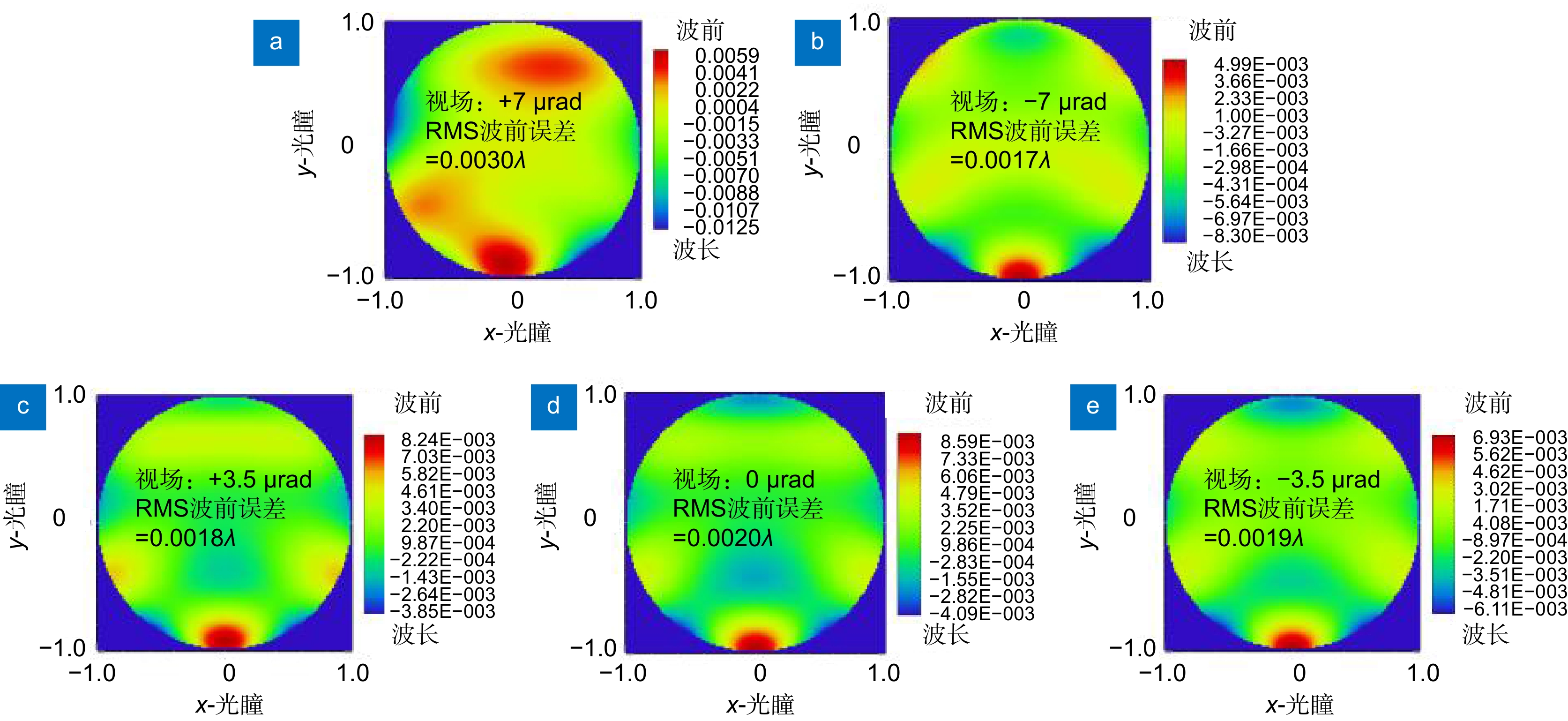

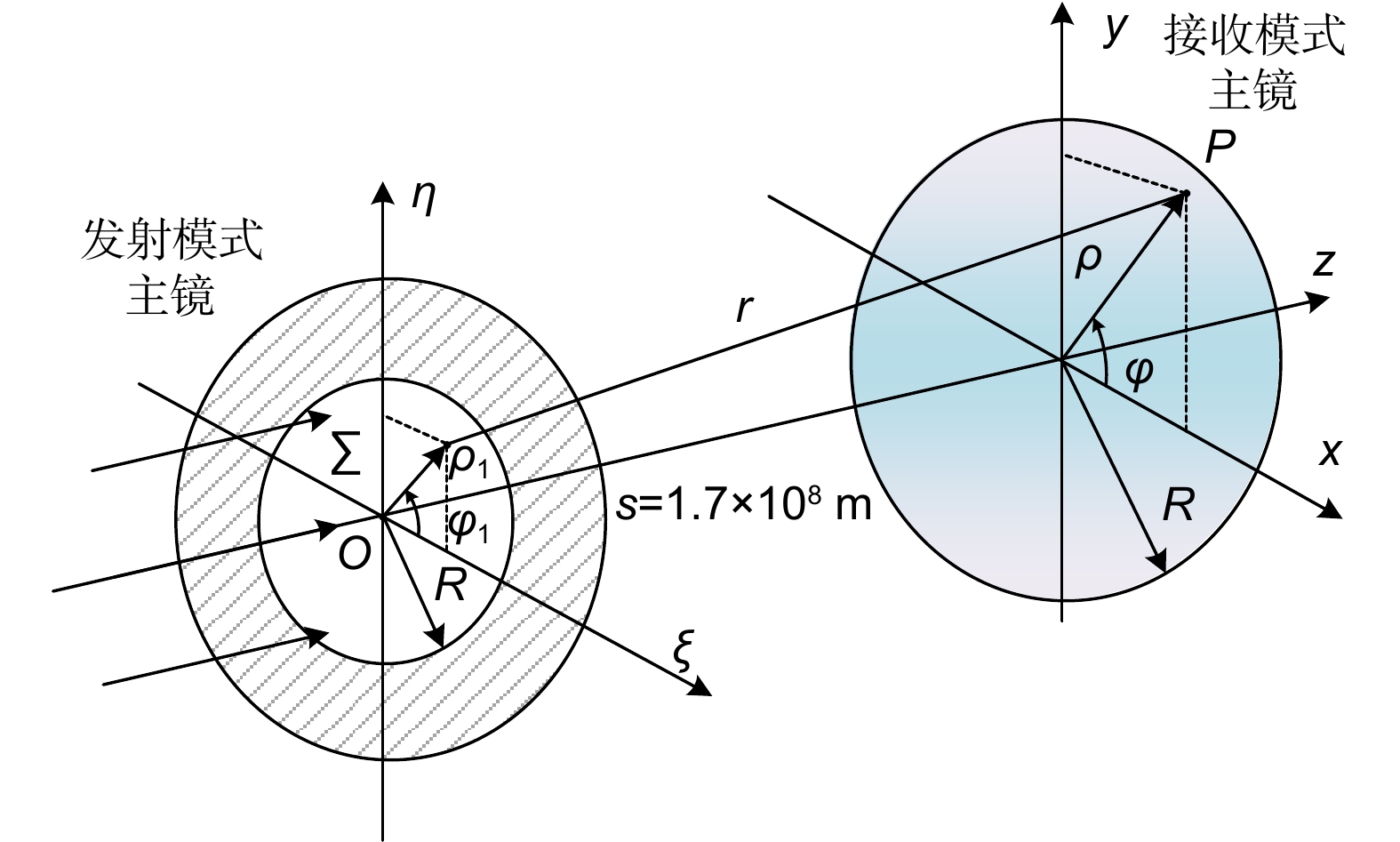

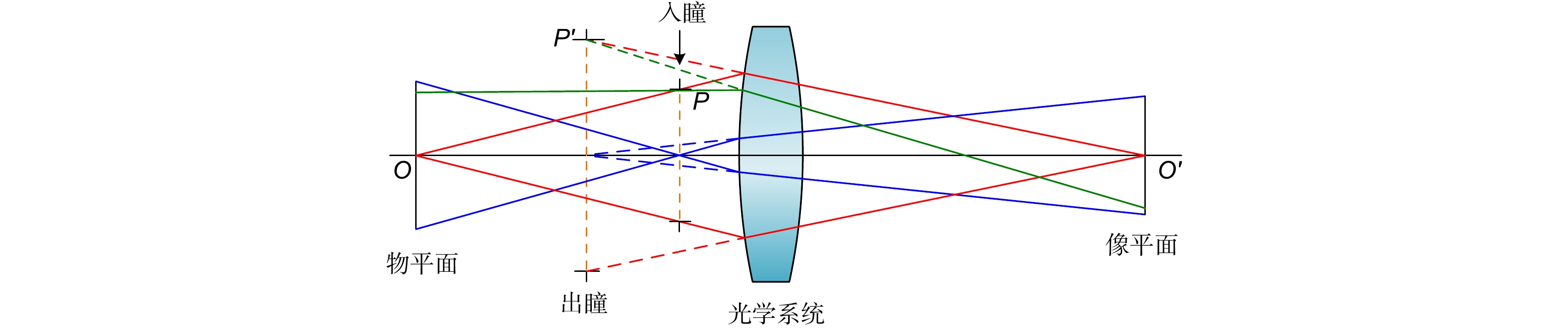

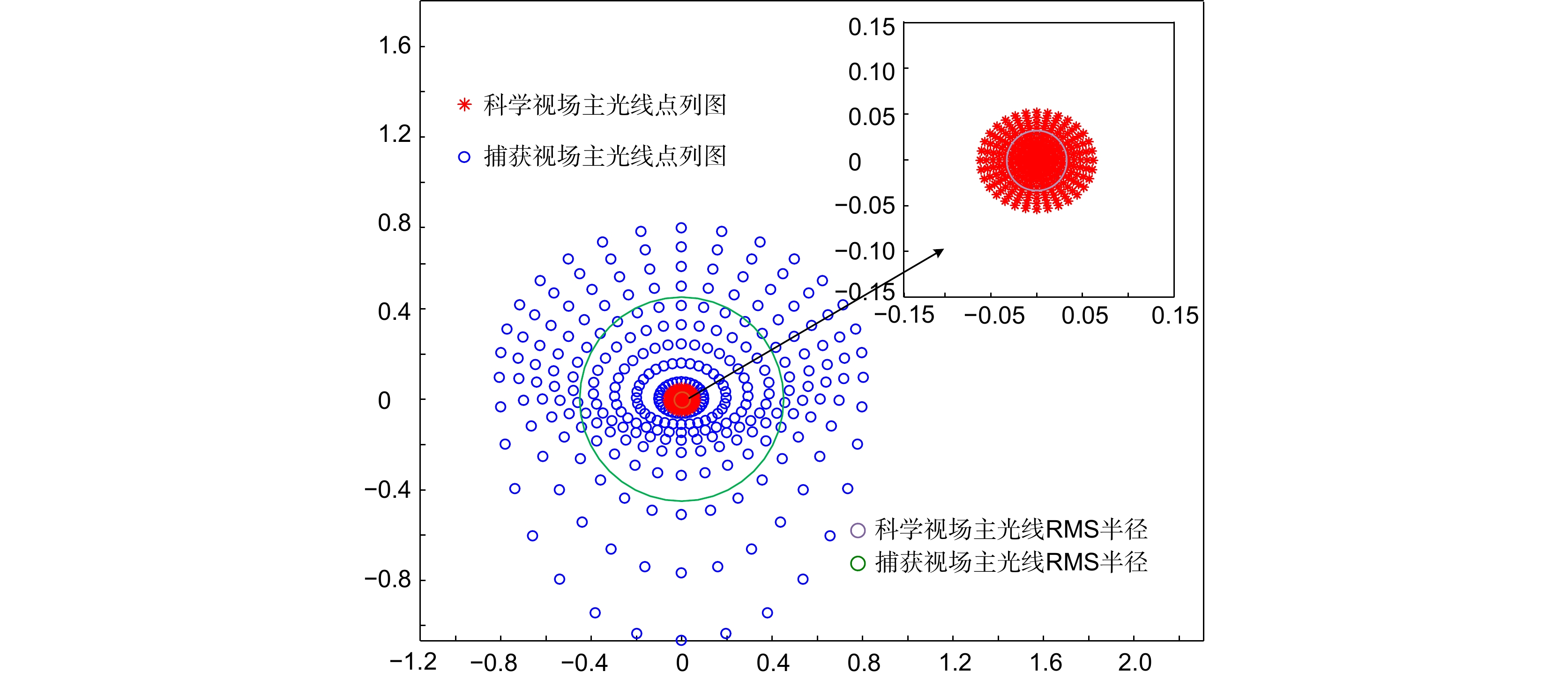

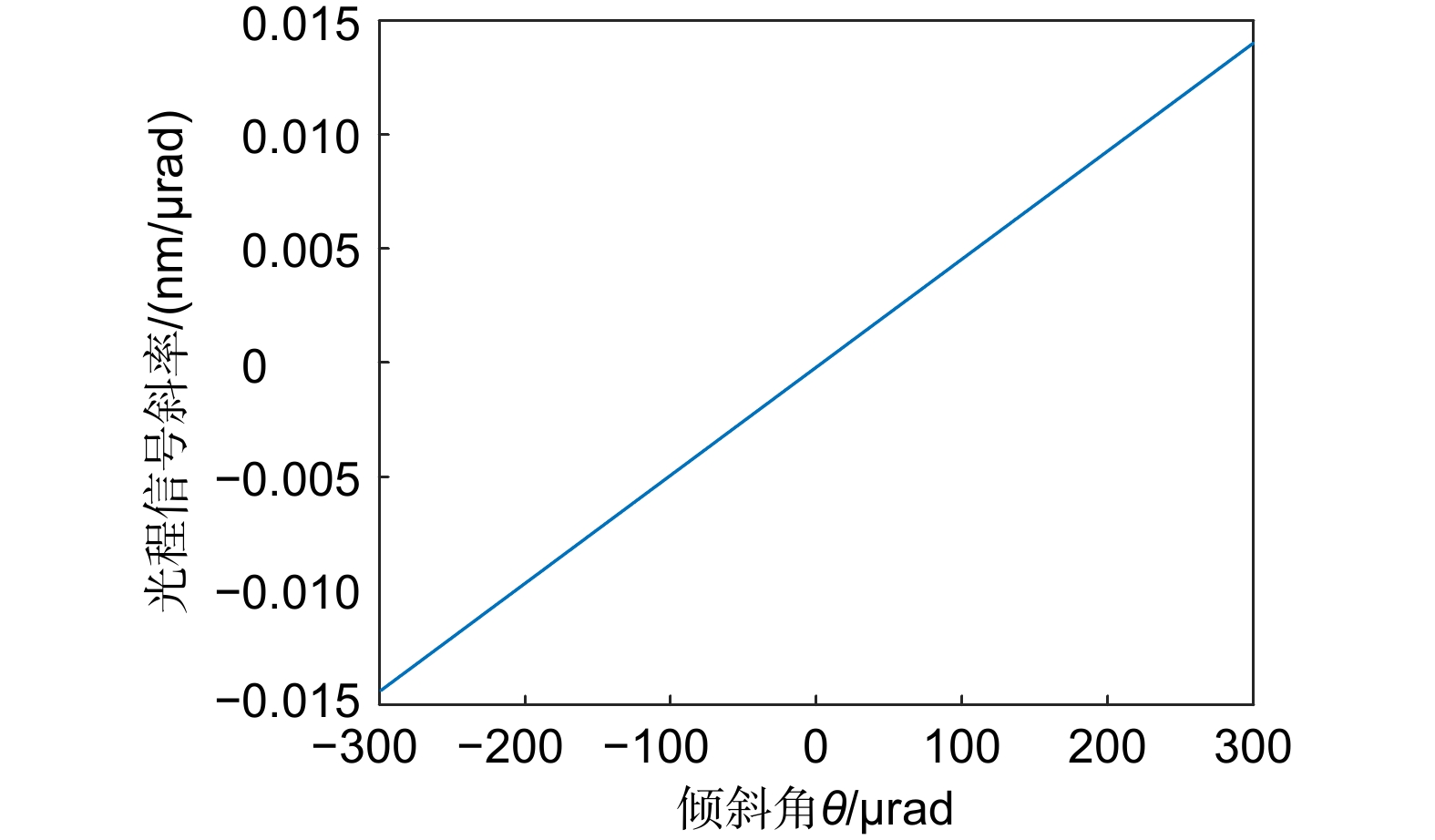

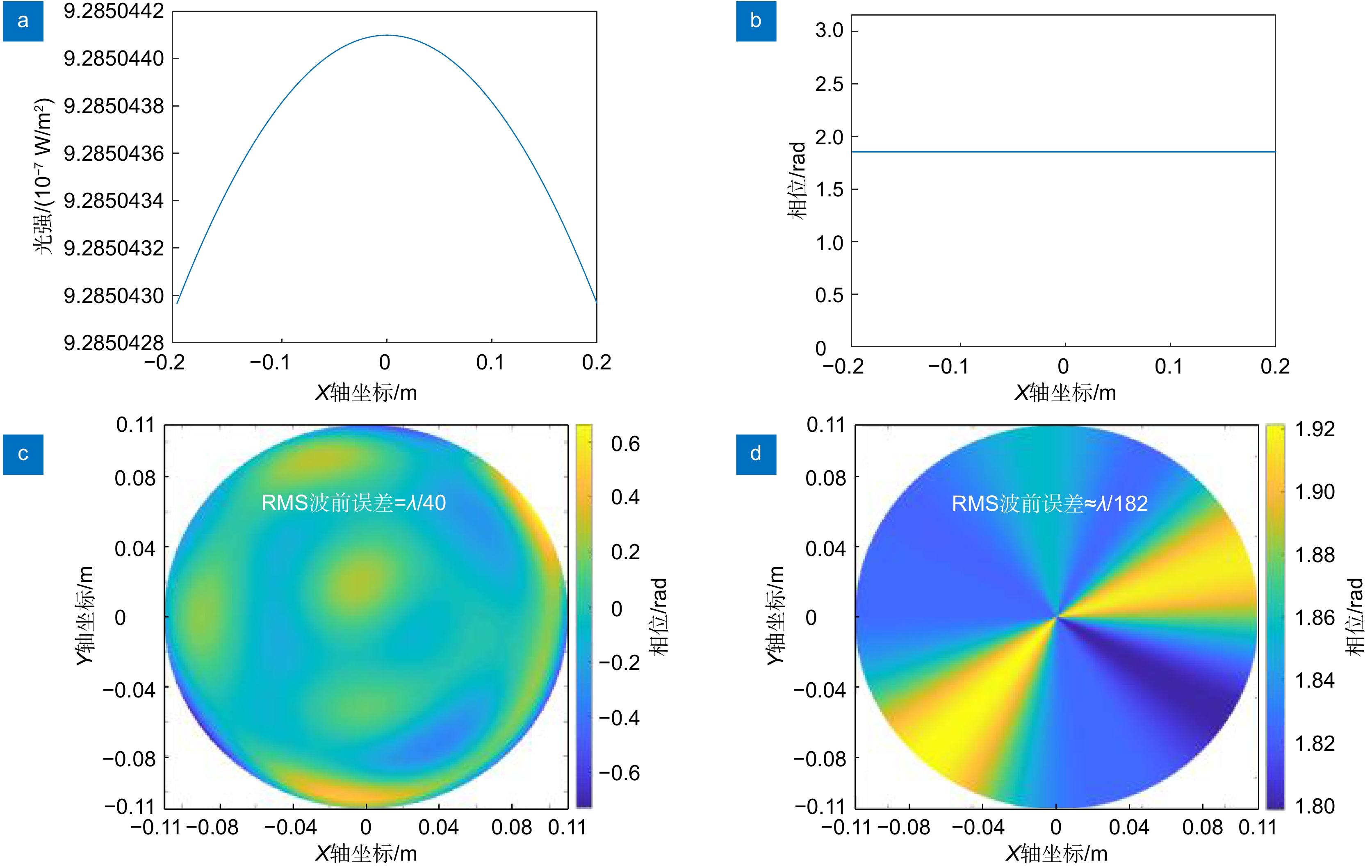

The telescopes for space-based gravitational wave detection are used to transmit the laser beam between spacecraft to support the precise interference measurement system. Therefore, the optical path stability of the telescope has become a crucial technical parameter. In this system, pupil aberrations provide deeper insights compared to traditional image plane aberrations in understanding optical path stability requirements, evaluating telescope imaging quality, and suppressing tilt-to-length coupling noise. Based on the theory of traditional imaging aberration and pupil aberration theory, the initial structure of the telescope is established, and the automatic correction of pupil aberration and image plane aberration is achieved through macro programming in the commercial optical software Zemax, thus achieving the design of a high-performance spaceborne telescope. Simulation results demonstrate that the design can meets the requirements of the TianQin mission.
